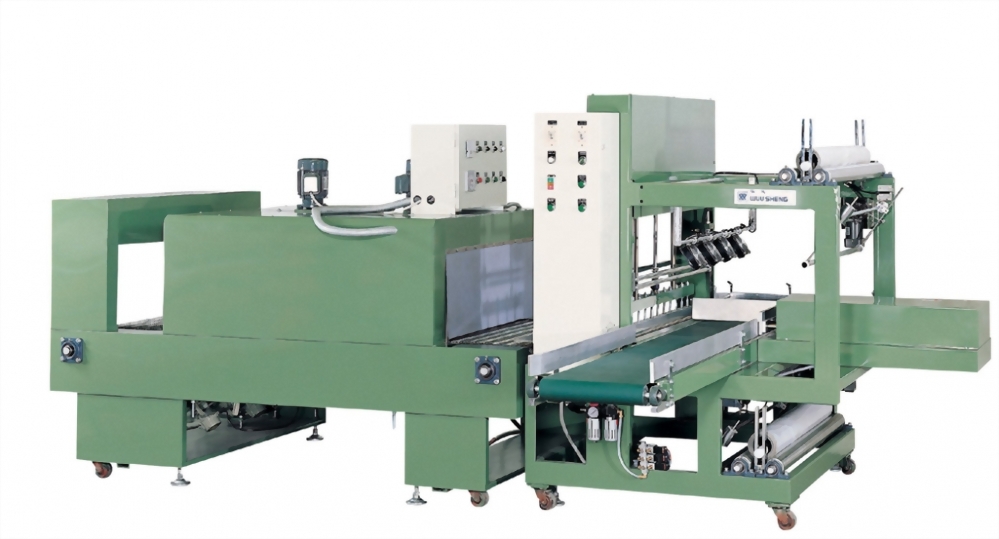

Sleeve Type Sealing Machine

1.This machine is easy to be adjusted and operated with any different products. It’s all automatically; do not need any operator that can raise more the production ability.
2.This machine is Auto PE and PVC Film Packaging Machine which is designed for shrinking film packing which are any oversize products, complicated shape articles, counted collectively and cases (boxes). However the shape is which all can be packed.
3.Group packing machine which can save more material cost and human resource cost.

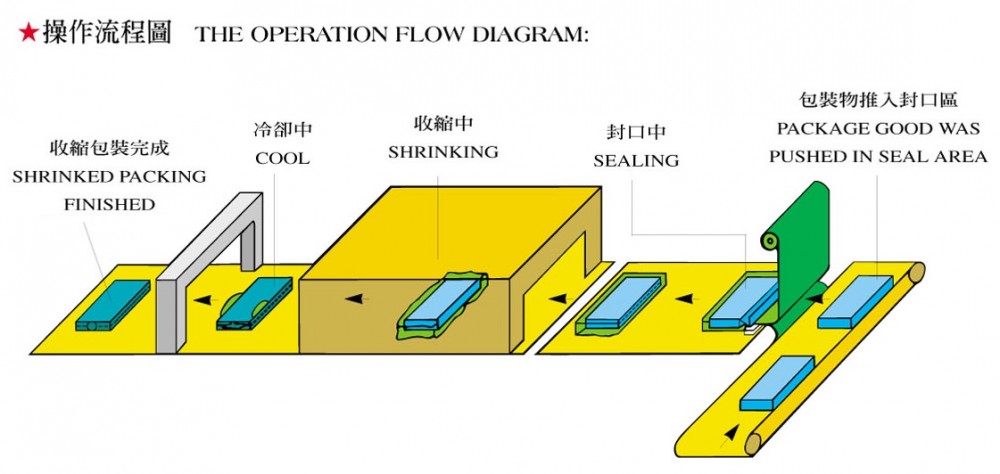

4.This machine has including in auto conveyor, push-in device, sealing and shrinking.
5.According to shape and property of package, and the conveyor of machine will be straight line or 90° turning for in-feeding.
6.This machine is suitable for either independent use or to be utilized in automated production line.

Model Machine Size (LxWxH) Sealer Size(LxH) Conveyor Width Max. Package Size Capacity Power
WS-8103 2250x1650x1800mm 1000x300mm 300mm 800x300x250 mm 4-8 pack / min 220V. 3Ø
WS-8104 2250x1850x1800mm 1000x300mm 400mm 800x400x250 mm 4-8 pack / min 220V. 3Ø
WS-8124 2250x1850x1800mm 1200x300mm 400mm 1000x400x250 mm 4-8 pack / min 220V. 3Ø
WS-8126 2250x2050x1800mm 1200x400mm 600mm 1000x600x350 mm 4-8 pack / min 220V. 3Ø
  1. Suitable for glass bottle, plastic bottle, aluminum can, iron can, box and case…etc.
