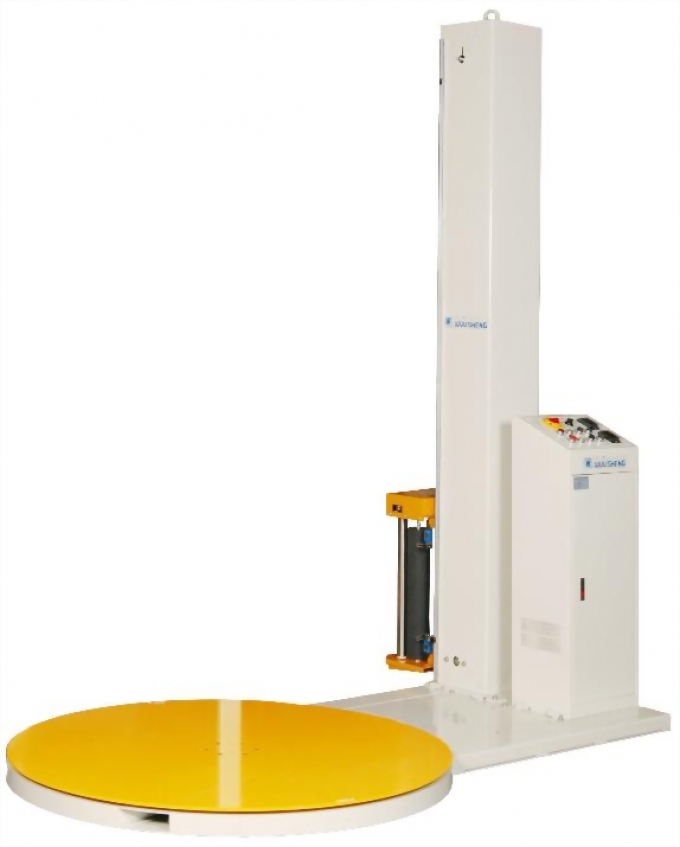

Stretch Wrapping Machine

1.The stretch film carriage is equipped with hinged drive, for smooth vertical movement. Speed is adjustable.
2.Turntable of stretch wrapping machine is equipped with hinged drive, for stable turning during pallet loading. Speed is adjustable.
3.Motor speed is controlled by inverter. It makes the machine running steadily and smoothly.
4.Two-dent design at the bottom of the turntable and it makes the forklift easily move the machine.
5.While carrying, the pole can be laid directly without dismantling. Save time and prevent the mistakes that may happen while installation.
6.The photoelectric cell of stretch wrapping machine can read the pallet height automatically. It is easy operating.
7.Electromagnetic brake device can adjust the tension of stretch film unlimited.
8.Pre-stretch System is optional. The purpose is to save the film material.
9.The turntable starts and stops rotation gently, and it guarantees products' safety.
10.The operator can choose manual or auto operation mode.
11.The bottom of stretch film rack has safety limit switch.

Model Packing Height Turntable Diameter Turntable Height Turntable Speed Electrical Heating Machine Size(LxWxH)
WSV-1521 2100mm 1500mm 80mm 5~15RPM 1.2KW 2623x1500x2410 mm
WSV-1821 2100mm 1800mm 80mm 5~15RPM 1.5KW 2623x1500x2410 mm
  1. This machine is used in any of export goods, foods, drinks, cartons, paints, plastics, glasses, and electrical parts which are need to pack in one package, and don’t waste any else cost, and also rise the efficiency and prevented the goods will not be damage when delivery. It does also can prevented the goods be clean.
