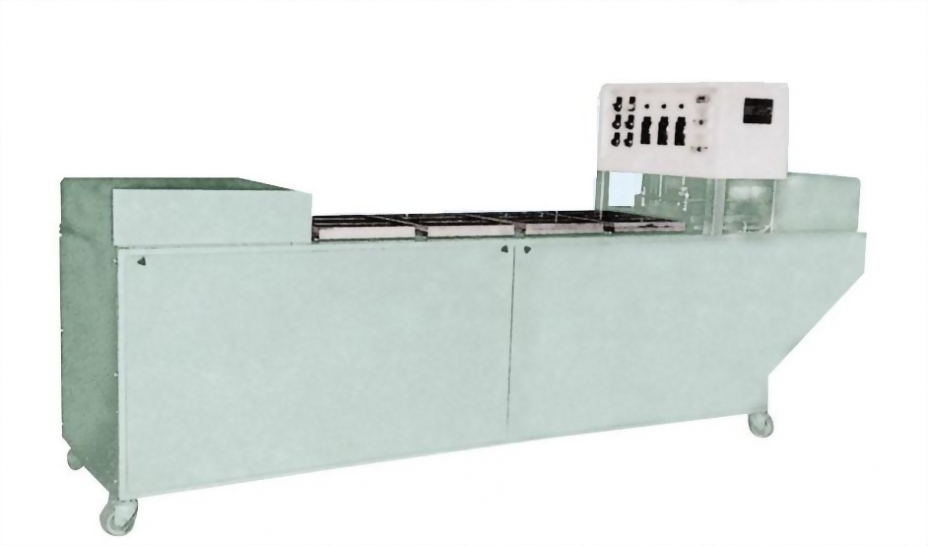

Continuous Type
Features:
1.This packaging machine is used in heating the transparent blister-shell which is made by vacuum forming machine, and blister-shell will be attached with exquisite-print cardboard.
2.There are two kinds way of Heating: Instantaneous heating and direct heating.
3.The continuous operation such as feeding, sealing, unloading, and position of sealing, which is all controlled by sensor.
4.The conveyor which is designed with two sections control. It’s easy to change the templates, and also can be set restart time after stop.
5.Continuously automatic unloading allows great packing capacity.
6.The electronic brake motor is powerful in starting and accurate in stop positioning.
7.The automatically cyclic operation of conveyer belt brings amazing mechanical work efficiency, reaches high production.
1.This packaging machine is used in heating the transparent blister-shell which is made by vacuum forming machine, and blister-shell will be attached with exquisite-print cardboard.
2.There are two kinds way of Heating: Instantaneous heating and direct heating.
3.The continuous operation such as feeding, sealing, unloading, and position of sealing, which is all controlled by sensor.
4.The conveyor which is designed with two sections control. It’s easy to change the templates, and also can be set restart time after stop.
5.Continuously automatic unloading allows great packing capacity.
6.The electronic brake motor is powerful in starting and accurate in stop positioning.
7.The automatically cyclic operation of conveyer belt brings amazing mechanical work efficiency, reaches high production.
Specifications
| Model | Heating Type | Power | Molds | Mold Size | Heating Time | Compressor | Table Height | Machine Size (LxWxH) |
|---|---|---|---|---|---|---|---|---|
| BP-580 | 瞬熱式 Impulse Heating | 220V. 1Ø | 12 | 380 x 600mm | 2-4 sec. | 4-6kg / cm2 | 900H mm | 3000 x 950 x1450 mm |
| BP-580H | 直熱式 Direct Heating | 220V. 1Ø | 12 | 380 x 600mm | 2-4 sec. | 4-6kg / cm2 | 900H mm | 3000 x 950 x1450 mm |
Applications
- Suitable for all products which are packed with blister-shell, such as hardware, electronic products, stationery, foods, ornaments, toys and necessities, etc.
