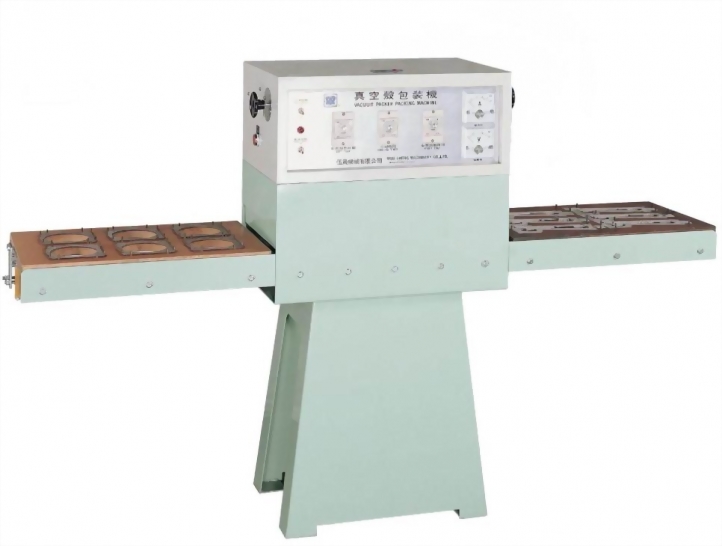

Reciprocating Type
Features:
1.This packaging machine is used in heating the transparent blister-shell which is made by vacuum forming machine, and blister-shell will be attached with exquisite-print cardboard.
2.There are two kinds way of Heating: Instantaneous heating and direct heating.
1.This packaging machine is used in heating the transparent blister-shell which is made by vacuum forming machine, and blister-shell will be attached with exquisite-print cardboard.
2.There are two kinds way of Heating: Instantaneous heating and direct heating.
Specifications
| Model | Heating Type | Power | Molds | Mold Size | Table Height | Heating Time | Machine Size(LxWxH) | Compressor |
|---|---|---|---|---|---|---|---|---|
| BP-560 | 瞬熱式 Impulse Heating | 220V. 1Ø | 1 or 2 | 380 x 600mm | 760H mm | 2-4 sec. | 1840 x 400 x1190 mm | 4-6kg / cm2 |
| BP-560H | 直熱式Direct Heating | 220V. 1Ø | 1 or 2 | 380 x 600mm | 760H mm | 2-4 sec. | 1840 x 400 x1190 mm | 4-6kg / cm2 |
| BP-560A | 瞬熱式 Impulse Heating | 220V. 1Ø | 1 or 2 | 380 x 600mm | 760H mm | 2-4 sec. | 1840 x 400 x1190 mm | 4-6kg / cm2 |
Applications
- Suitable for all products which are packed with blister-shell, such as hardware, electronic products, stationery, foods, ornaments, toys and necessities, etc.
